DUAL FUEL KIT FOR DIESEL GENERATORS

The Dual Fuel Kit is installed in Diesel Generators for mix fuel operation, i.e., Diesel + Natural Gas.

Our customized kit enables the Generator to utilize 50% of Natural Gas and 50% of Diesel Fuel. This provides a major reductin in running expenses.

The Dual Fuel Kit can be installed in all ratings, however, 100 kVA and above ratings are most suitable for this purpose.

Price List for Dual Fuel Kits
10 kVA to 90 kVA	Rs 60,000/-
100 kVA to 190 kVA	Rs 1,50,000/-
200 kVA to 450 kVA	Rs 2,50,000/-
500 kv & above	Rs 4,00,000/-
- Visit charges are not included. - Genset shall be monitored before installation of kit. - These are just estimated prices. Actual expense shall be forwarded after genset inspection.

SALIENT FEATURES

No major engine modifications required

. No efficiency losses

. Low cost and easy to install

. Reduces running costs

. E xtends life-time of standby engines

. Lowers emissions

. Does not require high-pressuregas supply

. Allows use of interruptible gas

. State-of-the-art controls and monitoring

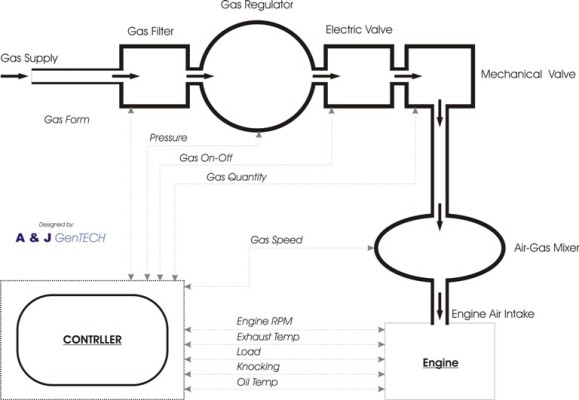

MAJOR PARTS

UNITS
- Gas Inlet System

- Gas Filters

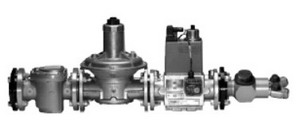

- Gas Regulators

- Solenoid Valves

- Mechanical Valves

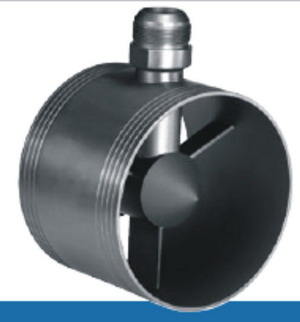

- Air-Gas Mixer System

- Safety System

- Engine Input System

- Module

- Controller

SENSORS

- Knocking Sensor

- Exhaust Temperature Sensor

- Water Temperature Sensor

- Oil Temperature Sensor

- RPM Sensor

SAFETY

- Safety Card

- Safety Switches

- Smoke Detector

ELECTRONICS

- Actuator

- Demand Regulator

- Current Transformers

-Hardware Wiring, etc.
